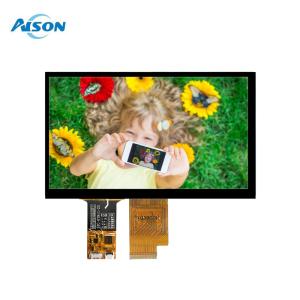

7 inch 1024x600 LVDS IPS TFT LCD Display USB I2C Interface Capacitive Touch Panel

Brand Name : AISON

Model Number : Z070WS37-CT

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable based on quantity

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Delivery Time : 7 working days

Packaging Details : Carton/Blister Package

Item : 7 Inch TFT USB Touch Display

Resolution : 1024X600

Outline dimension : 180X120X7.6 mm

Active area : 154.21 x 85.92mm

Interface : LVDS

Brightness : 400 cd/m2

LCD Type : TFT, Normally Black, Transmissive

Operating temperatures : -20℃ To +70℃

Storage temperatures : -30℃ To +80℃

Touch Interface : I2C&USB

Contact Now

7 inch 1024x600 LVDS IPS TFT LCD Display USB I2C Interface Capacitive Touch Panel

General Description

Z070WS37-CT is a 7 inch 1024x600 TFT IPS display with LVDS interface and with USB and I2C Interface Capacitive Touch Panel.
The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an IPS viewing direction 85/85/85/85. The brightness ranges from 400 nits to 450 nits.

This 7 inch LVDS TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.


General Data

Product Name7 inch IPS USB TFT Touch Display
Resolution1024x600
Model Size (W*H*T)mm180x120x7.6
Display Area (W*H)mm154.21 x 85.92
InterfaceLVDS
Display ModeNormally Black,Transmissive
ViewingIPS
Brightness400 cd/m2
Pin number40 pin
Contrast Ratio700:1
Operating temperatures-20 to 70 degree
Storage temperatures-30 to 80 degree

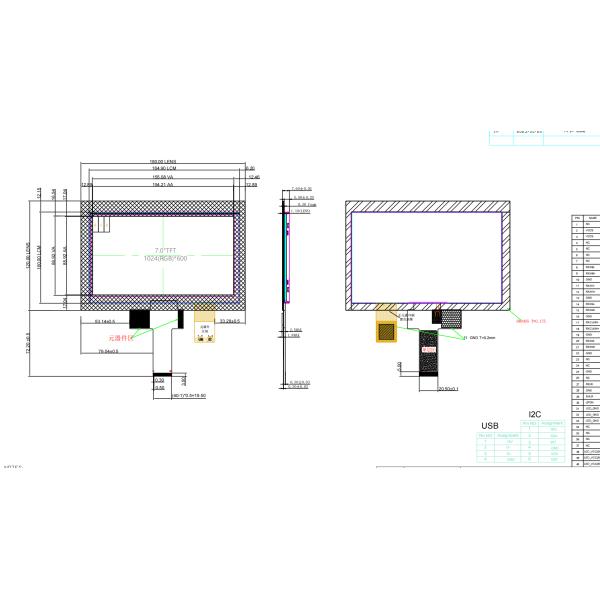

Drawing
7 inch 1024x600 LVDS IPS TFT LCD Display USB I2C Interface Capacitive Touch Panel



TFT Applications:
This 7-inch IPS tft display module is ideal for various medical and industrial control applications. It is used in medical instruments, diagnostic devices, industrial automation robots, control panels, and maintenance equipment. These 7 inch USB touch displays are integral in presenting diverse medical, control, and maintenance data and information, providing clear, reliable visual output in demanding environments. This makes them essential components in medical and industrial control systems, enhancing both functionality and user experience.
